Accurate surface labels are essential in Autodesk Civil 3D. Correctly identifying the direction of the slope is crucial to the design of a site's drainage system, road alignment, and other construction elements. However, slope arrows that point uphill can create confusion and misunderstanding in technical drawings. In this blog post, we will discuss the "Downhill" custom expression and how it can be used in Autodesk Civil 3D to solve this problem.

Autodesk Civil 3D provides the user with the ability to insert two-point slope arrows on surface labels. These arrows indicate the direction of the slope between two points on the surface. They are incredibly useful in analyzing surface models, and they help in designing accurate site elements. However, one frustrating issue with the two-point slope arrows is that they can point uphill. This is where the "Downhill" expression comes to the rescue.

The "Downhill" expression is a custom expression that can be applied to slope labels. Its purpose is to ensure that slope arrows always point downhill. This expression takes into account the slope direction and the elevation difference between the two points. As a result, even if the slope direction is facing uphill, the arrow will still point downhill, according to the elevation of the points.

To create a custom expression, follow these steps:

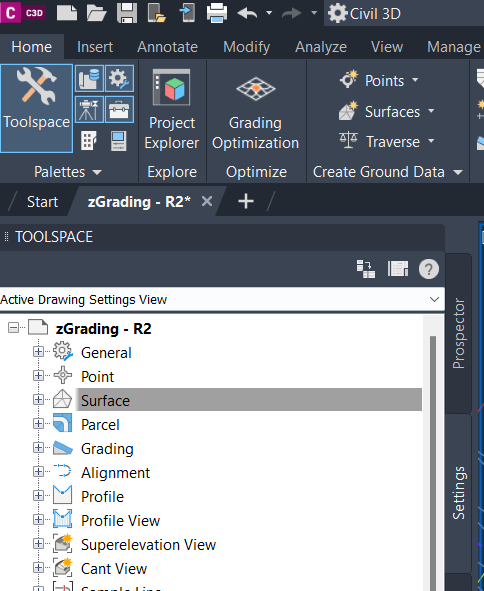

Step 1

Go to Toolspace and navigate to the Settings tab.

Step 2

Expand the Surface section and click on Label Styles, then expand it.

Step 3

Expand the Slope section and choose Expressions.

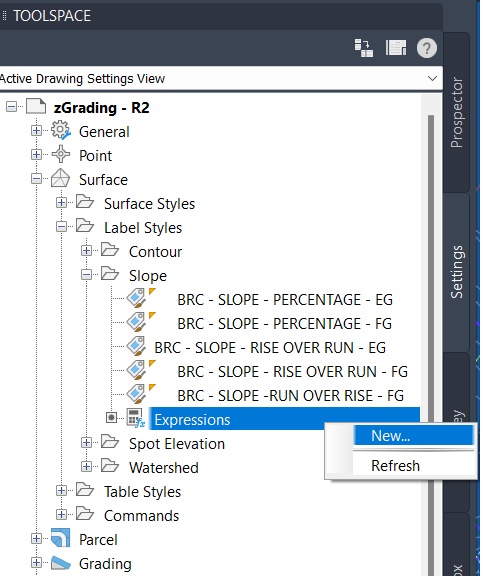

Step 4

Right-click on Expressions and select New.

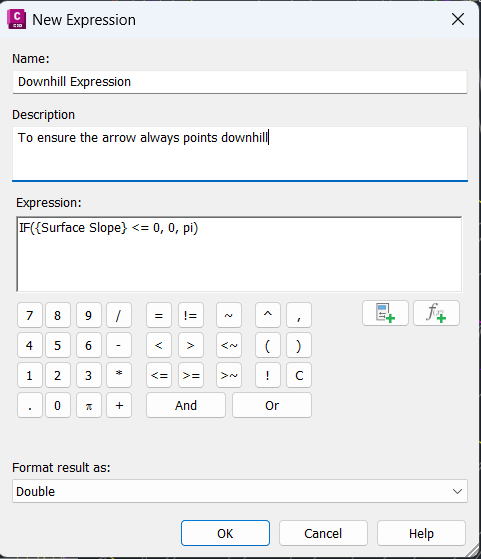

Step 5

In the window that appears, name the new expression (let's call it "Downhill Expressions" for this example) and provide a description if desired. Enter the expression
and click OK.



Note: Simplified Syntax Insight: The expression IF({Surface Slope} <= 0, 0, pi) uses the magic of pi. In plain terms, it checks if the slope is uphill (<= 0) and sets the arrow to 0, while if it's downhill, it cleverly aligns with pi. This ensures a consistent downward-pointing arrow, making your slope labels crystal clear.

Modifications to the "Percent Slope" label style were required to make use of the "Downhill" expression. Typically, the "Percent Slope" label style displays the slope value with a negative sign if it is pointing uphill. However, this can be confusing for readers, especially since the slope arrow is pointing downhill. The solution was to remove the negative sign and adjust the precision of the slope value.

When used together, the custom expression and modified label style result in a more clear and informative slope label. To ensure that the custom style and expression are applied consistently, save the drawing as a template for future use.

The "Downhill" custom expression in Autodesk Civil 3D is a handy tool for ensuring that slope arrows always point downhill in surface labels. This expression takes into account the slope direction and the elevation difference between two points to produce a consistent result. The modifications to the "Percent Slope" label style further clarify the slope label's information. By using these tools, technical drawings become clearer, more accurate, and more informative. It is essential to save this useful tool as a template for future projects.

It's important to note that modifications to the "Percent Slope" label style may be necessary to fully leverage the "Downhill" expression. Typically, the "Percent Slope" label style displays the slope value with a negative sign if it points uphill, which can be confusing. To address this, remove the negative sign and adjust the precision of the slope value.

To modify the "Percent Slope" label style, follow these steps:

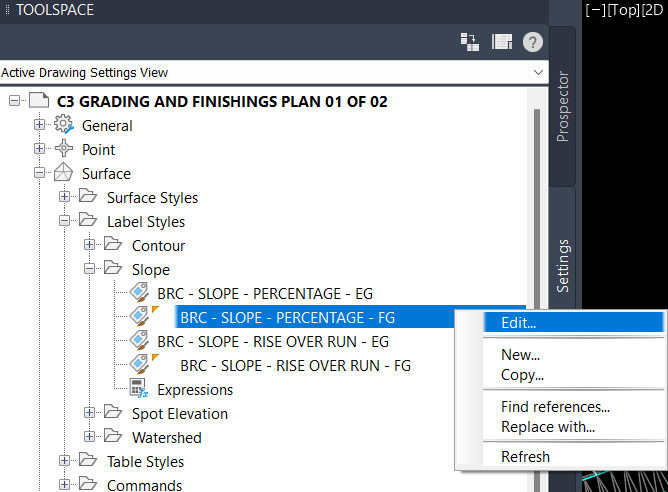

Step 1

Right-click on the Percent Slope label style and choose Edit.

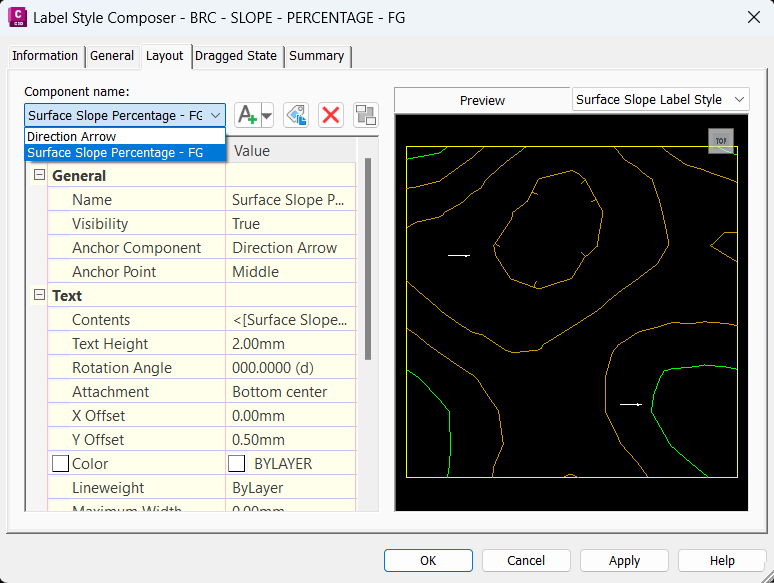

Step 2

Navigate to the Layout tab and select Surface Slope from the Component name dropdown.

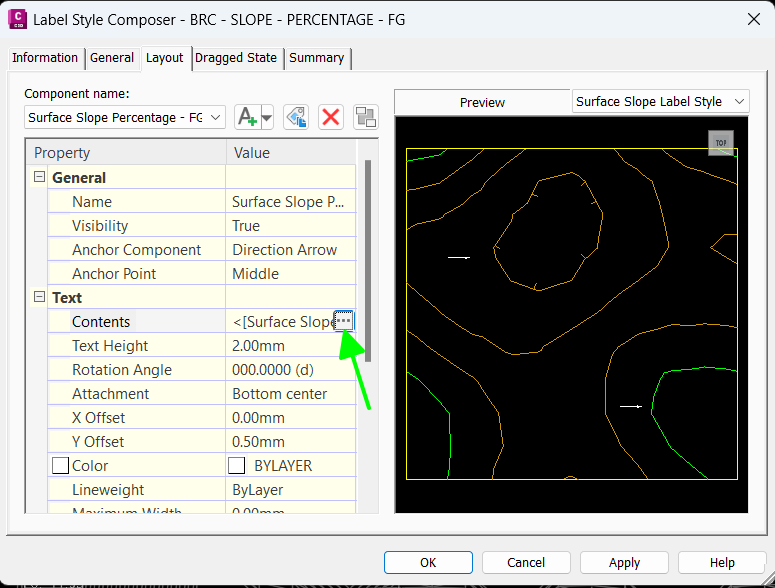

Step 3

In the Text section, click on the three dots (...) that appear in the cell to proceed to the next step.

Step 4

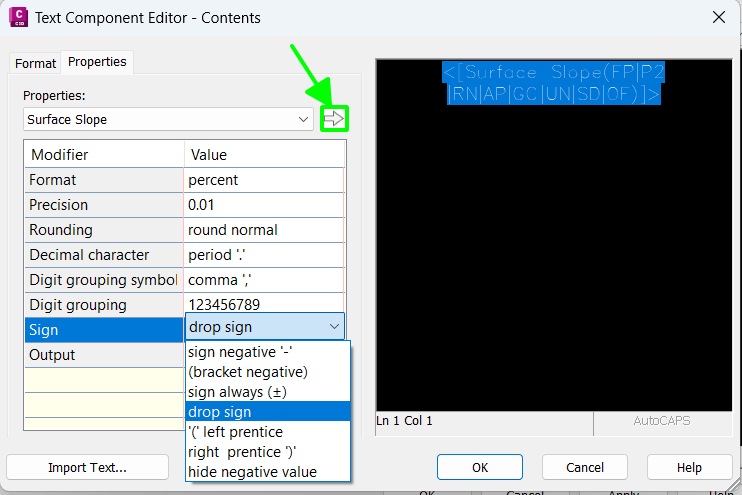

Expand the Sign section and choose "drop sign". Then, click the Right Arrow next to the Surface Slope to add it.

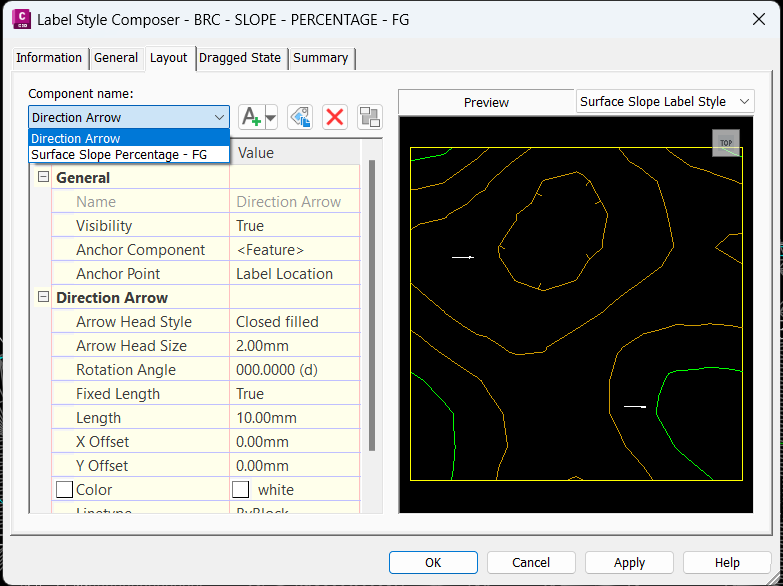

Step 5

Go back to the Label Style Composer window. Select "Direction Arrow" under Component name.

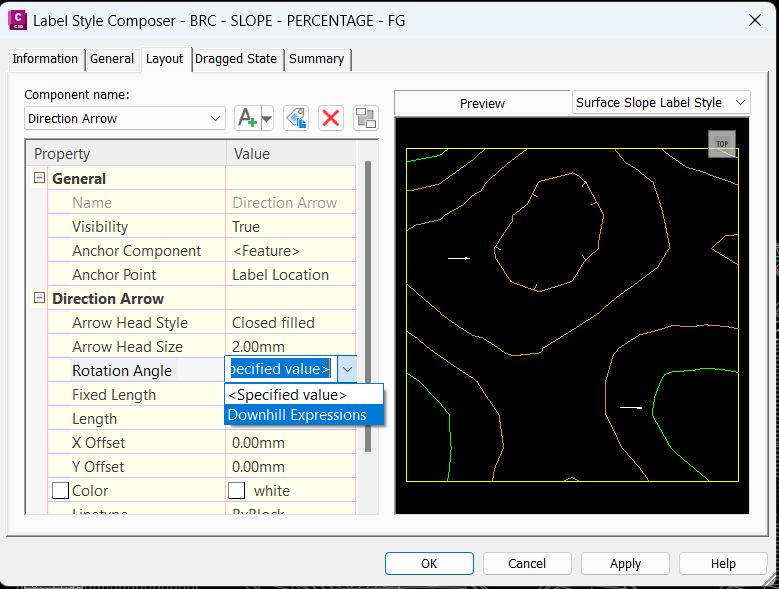

Step 6

Choose "Downhill Expression" from the Rotation Angle dropdown. Click OK, then apply the new style to all previously selected labels by clicking OK again.

By combining the custom expression and modified label style, you create a more transparent and informative slope label. For consistency, save the drawing as a template for future projects, ensuring the continued application of these tools. The "Downhill" custom expression in Autodesk Civil 3D proves to be a valuable asset in guaranteeing that slope arrows consistently point downhill, contributing to clearer, more accurate, and more informative technical drawings.



NOTES

  1. Staying Current: It's always a good practice to stay in the loop with the latest updates from Autodesk Civil 3D. Ensure the information provided aligns with the most recent version of the software for continued accuracy and relevance in your projects.
  2. Unlock Efficiency: Leverage the power of templates by saving your customized drawing settings. This not only streamlines future projects, saving you valuable time, but also ensures standardized settings for consistency across your design endeavors.
  3. Illuminate with Graphics: Enhance your understanding by including visual examples. Consider showcasing a before-and-after snapshot of a slope label, demonstrating the impactful difference after the application of the 'Downhill' expression. Visual aids can significantly contribute to a clearer comprehension of the discussed concepts.
  4. Demystifying the Pi Radians: In simple terms, the use of pi radians in the expression ensures that the arrow always rotates downhill. This mathematical mechanism guarantees a consistent and accurate depiction of slope direction, enhancing your grasp of the 'Downhill' expression.
